Bunkoukeiki
Current Voltage Measurement Solar Simulators
OTENTO SUN III

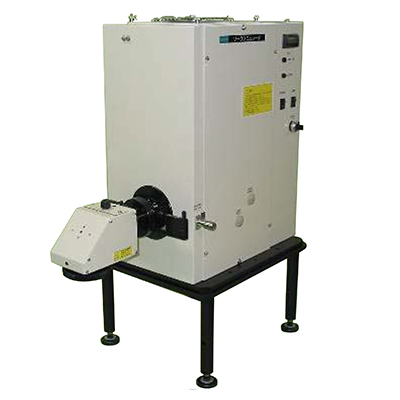

OTENTO-SUN III Solar Simulator
The Model OTENTO-SUN III Solar Simulator employing the Xenon lamp and AM1.5G filter irradiates pseudo solar light on the sample such as a solar cell to evaluate its characteristics. The Model OTENTO-SUN III is classified as Class AAA by conforming to the Japanese Industrial Standard JIS C8912 and C8933.
Optional filters are set on the Model OTENTO-SUN III, which can be used for the following purpose:
1. Measurement of linearity of the light intensity of the sample using the ND filter
2. Irradiation of monochromatic light using the color filters
Specifications
| Irradiation intensity | 100mW/cm2 (1SUN) |
|---|---|
| Irradiation area | 20mm x 20mm |
| Spectral match | 0.75 ~ 1.25 *Class A（JIS C8912 and C8933) |
| Irradiation direction | Vertical and horizontal (360° variable angle) |
